Description

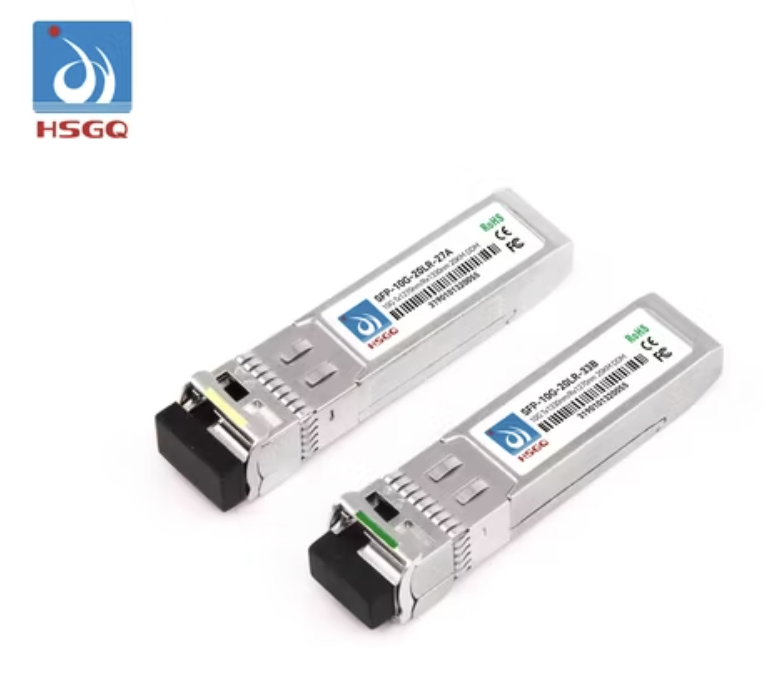

10G SFP+ DWDM 20~100km Compatible with Cisco
High bandwidth: The 10Gbps transmission rate meets the needs of high-bandwidth applications, such as 4K video transmission, large file transmission, etc.
Long-distance transmission: Single-mode optical fiber has low loss and can achieve long-distance non-relay transmission.
Cost-effectiveness: Compared with multi-mode optical fiber and dual-fiber systems, single-fiber single-mode systems can save optical fiber and equipment costs.
Flexible expansion: The capacity of the system can be further increased by increasing the number of wavelengths.
- Model:
SFP-10G-20LR/40ER/60ER-27A/33B; SFP-10G-80ZR/100ZR-48A/55B
- Compatible Brands:
Cisco, Juniper, Huawei, ZTE, H3C, Mellanox, DELL, Intel, Ubiquiti, FiberHome, Ruijie, D-LINK, Netgear, Ciena, Arista, Brocade, Extreme, Avago, Avaya, Nortel, Alcatel-lucent, Dahua, Hikvision, etc
Product Features
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggablemodule“SFP+”
1270/1330nm DFB transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
A ll-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
RoHS compliant
Operating case temperature range: Commercial:0 to 70℃; Industrial: -40 to 85℃
