Description

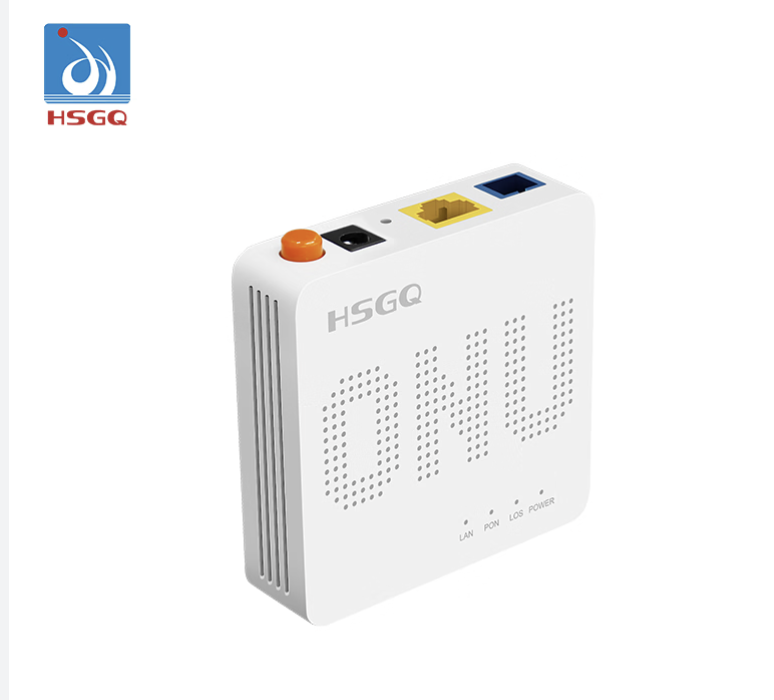

XPON Onu Fiber for WiFi Router
Structure: 1*1000M Ethernet interface (RJ45)；1*EPON/GPON adaptive interface.
Setting: Set up through the web interface or the management software that comes with the optical modem
Value: Usually lower than multi-port optical modems, suitable for users with limited budgets.
Consumption: Low power consumption and more energy-saving and environmentally friendly.
Scenario: Only one router in the home needs to connect to the Internet
- Model:
HSGQ-X100DG
| User interface | 1* 10/100/1000M RJ45 port |
| PON | EPON&GPON mode adaptive
lnterface Type: SC-UPC/SC-APC Network coverage radius: 20KM
GPON: upstream 1.25Gbps /down stream 2.5Gbps Optical receive sensitivity: ≥-7~-28dBm Continuo us light power: 0.5dBm~+5dBm
EPON: upstream 1.25Gbps /down stream 1.25Gbps Optical receive sensitivity: ≥-7~-27dBm Continuo us light power: 0dBm~4dBm |
| Ethernet | 1*10/100/1000M auto-negotiation
Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
| Size | 105mm(L)×85mm(W)×25mm(H) |
| Environment | Operating temperature: 0℃～60℃
Operating humidity: 10%～85% (non-condensing） Storage temperature: -40℃～80℃ Storage humidity: 5%～95% (non-condensing） |
| Power supply | 12V 0.5A DC
power interface size: 2.1mm/ 5.5mm |
| Power | < 3W |
| Man | Web/ TELNET/ TR069/ OAM/ OMCI |
KEY FEATURES
- Support port – based rate limitation and bandwidth control.
- ln compliant with IEEE802.3 ah &ITU-T G.984 adaptive interface.
- Up to 20KM transmission distance.
- Support data encryption, group broadcasting, port Vlan separation, etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto – discovery/ Link detection/ remote upgrade of software.
- Support port mode of VLAN configuration.
- Support power – off alarm function, easy for link problem detection.
- Support broadcasting storm resistance function.
- Support port loop detection.
- Support ACL to configure data packet filter flexibly.
- Support PPPoE/ DHCP Server/ IPTV/ NAT.
- Specialized design for system breakdown prevention to maintain stable system.
- Support software online upgrading.
- Support mac/ port/ url filter.
| Indicator | Description | |
| POWER | Power status | On: The ONU is power on |
| Off: The ONU is Power off | ||
| PON | ONU Register | On: Success to register to OLT |
| Blinking: In process of registering to OLT | ||
| Off: Fail to register to OLT | ||
| LOS | Optical Signals | On: Optical power is abnormal |
| Off: Optical in normal | ||
| LAN | LAN Port status | On: Ethernet connection is normal |
| Blinking: Data is being transmitted | ||
| Off: Ethernet connection is not set up | ||
