Description

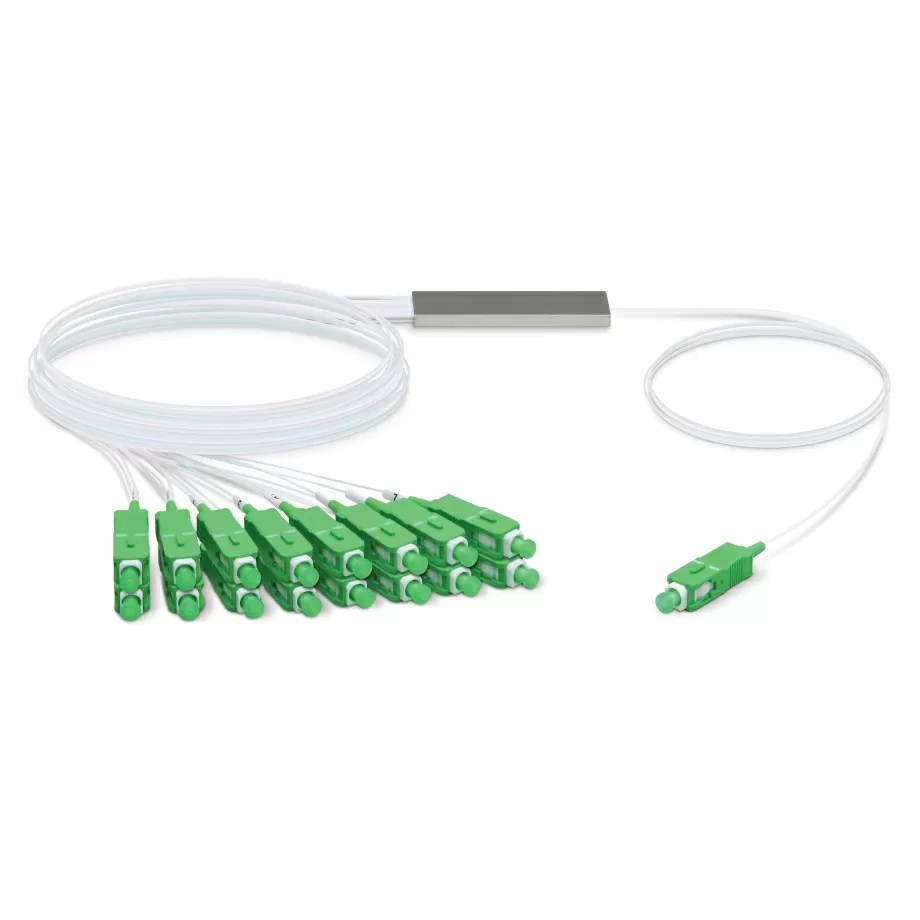

This 1:16 Fiber Optic Splitter is a high-performance solution for distributing optical signals from a single input to sixteen individual end-points. Equipped with SC/APC (Angled Physical Contact) connectors, this splitter is specifically designed for high-density networks like FTTH (Fiber to the Home) and PON (Passive Optical Networks) where low back-reflection and signal integrity are paramount.
The angled polish of the SC/APC connectors ensures superior return loss, making it the ideal choice for high-speed data and video transmission.
Key Features
-
High Split Capacity: Efficiently splits one optical signal into sixteen outputs, maximizing the reach of your network infrastructure.
-
SC/APC Precision: Features 17 high-quality SC/APC connectors (1 input, 16 outputs) with green housings for easy identification of angled physical contact.
-
Exceptional Stability: Provides uniform signal distribution across all ports with low insertion loss and minimal PDL (Polarization Dependent Loss).
-
Compact Integration: The space-saving design fits perfectly into standard Fiber Access Terminals (FAT), Optical Distribution Frames (ODF), and outdoor splice closures.
-
Durable Performance: Built with high-quality single-mode fiber (G.657A1/A2) that offers excellent bend resistance for tight installation spaces.
Technical Specifications
| Feature | Specification |
| Splitter Type | PLC (Planar Lightwave Circuit) |
| Configuration | 1 Input x 16 Outputs |
| Connector Type | SC/APC (Angled Physical Contact) |
| Operating Wavelength | 1260nm to 1650nm |
| Fiber Type | Singlemode G.657A |
| Packaging | Protective plastic tray or optional ABS/Steel Tube casing |
| Return Loss | $\ge 60dB$ (APC standard) |
Why Choose the 1:16 SC/APC Splitter?
-
Uniform Distribution: Advanced PLC technology ensures that all sixteen subscribers receive a balanced and consistent signal strength.
-
Ultra-Low Reflection: The SC/APC polish is essential for modern fiber networks to prevent signal interference caused by back-reflections.
-
Field-Ready Versatility: Whether you are upgrading a local exchange or deploying new residential fiber, this splitter is compatible with most standard termination boxes and distribution cabinets.
Applications
-
FTTX/FTTH Deployments: The core component for last-mile subscriber distribution.
-
GPON/EPON Networks: Ideal for high-density passive optical network architectures.
-
CATV over Fiber: Perfect for distributing high-quality analog or digital video signals.
