Description

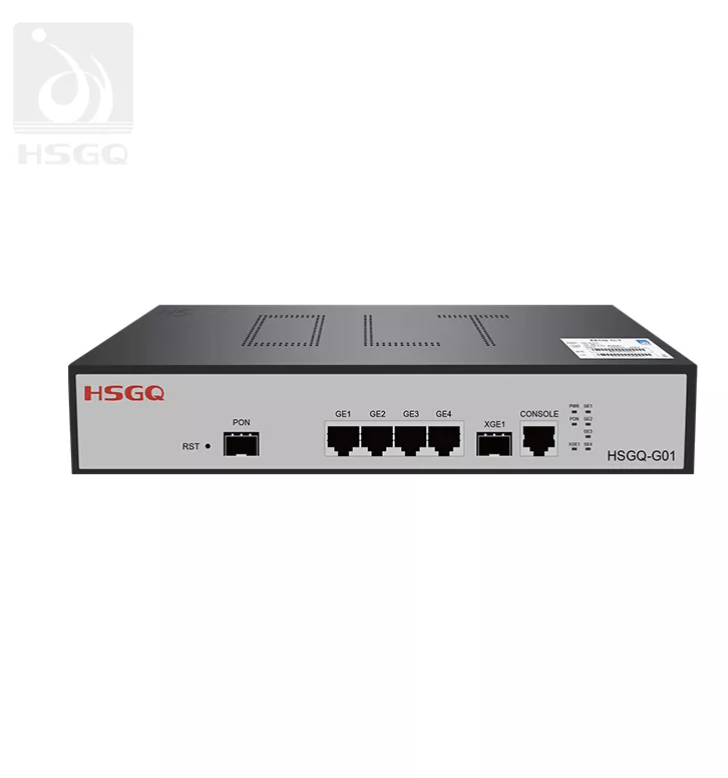

1 Port Gpon Mini OLT Optical for FTTX
Structure: 1*Fixed GPON Port; 4*GE RJ45; 1*10G SFP+; 1*Console Port.
Cost-effectiveness: Lower in cost than traditional OLT, it is a more cost-effective choice.
Deployment: Small size, light weight, easy to install and deploy.
Expansion: More ONUs can be added as needed to meet network expansion needs.
Performance: Adopts mature technology with high reliability and stability.
Suitable: Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
Key Feature
- 16K MAC address table.
- Support flexible DBA, up and down traffic speedcontrol.
- Support port aggregation.
- Support port-based traffic control, traffic shaping.
- Support ONU automatic identification, auto-discovery, and auto-registration.
- Support VLAN.
- Flexible and controllable multicast support.
- Support IGMP snooping.
- Support Cloud Management.
G01 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/ Unicom GPON, with super GPON access capacity, carrier-class reliablity and the complete security function. lt can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and fexible network mode. G01 can be used with network management system so as to provide userswith the comprehensive access and perfect solution.
| Item | HSGQ-G01 |
| Interface | 1*GPON |
| 4*GE RJ45 | |
| 1*10G SFP+ | |
| PON | ITU.T G.984.x/G.988; |
| Password authentication modes | |
| Terminal access up to 20km on a single fiber | |
| 1: 128 split ratio on single PON port | |
| DBA algorithm, and the particle is for 64Kbit/s | |
| Standard OMCI management function | |
| ONU batch software upgrade | |
| PON port optical parameter detection | |
| Auto registration ONU bound with default profile | |
| Flash | 16MB |
| DDR | 512MB |
| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature:-10°C~55°C |
| Storage temperature:-40°C~70°C | |
| Storage humidity:5%~95% (non-condensing) | |
| Power Supply | DC 12V |
| Power Consumption | ＜10W |
| Platform Management Features | Device list |
| Project management | |
| Version Release | |
| Lisense management | |
| Permission management | |
| User management | |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD |
| Software and bootrom Upgrade by TFTP and FTP | |
| Chinese/English command prompt | |
| Ping and Debug diagnosis | |
| User/Log/Alarm management | |
| Status | PON Status |
| Uplink Status | |
| Performance Monitor | |
| System Monitor | |
| L2 Function | Support VLAN |
| Support Port mirror | |
| Support Storm control | |
| Support IGMP Snooping/proxy | |
| Support MAC Black Hole | |
| Support Port isolation | |
| Encrytion of PON port transmitting data |
