Description

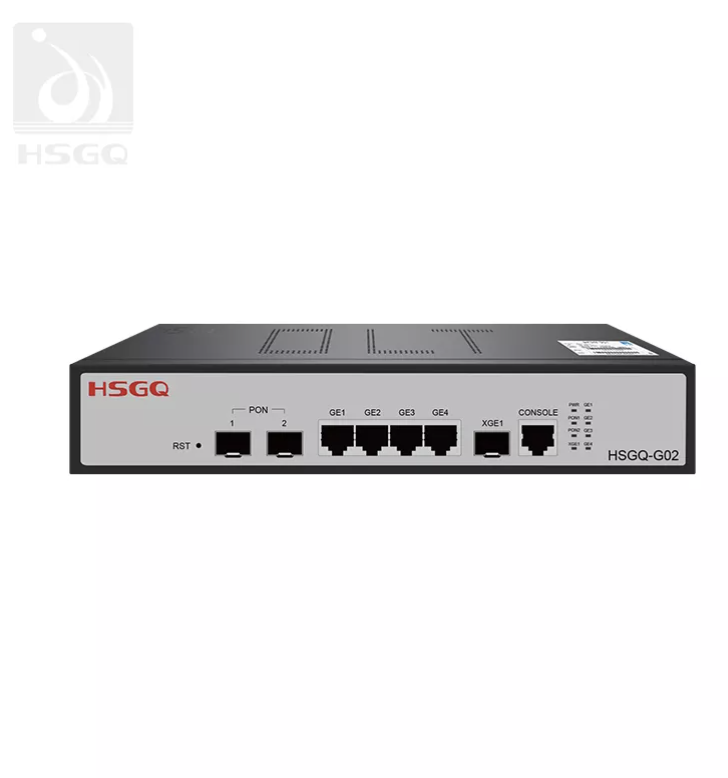

2 Ports Gpon OLT Customized for FTTH Access
Structure: 2*Fixed GPON Port1; 4*GE RJ45; 1*10G SFP+; 1*Console Port.
Weight: Small size, easy to install and maintain.
Performance: Support GPON technology, can provide up to 2.5Gbps bandwidth.
Feature: Cost-effective, ideal for small broadband access solutions.
Scenario: Small enterprise broadband access/home broadband access/security monitoring.
G02 is a small-capacity cassette GPON OLT, meeting the reguirements of iTU-T G,984/G,988 and relative standards of China Telecom/ Unicom GPON, with super GPON access capacity, carier-class reliablity and the complete security function. lt can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. G02 can be used with network management system so as to provide users with the comprehensive access and perfect solution.
G02 provides 2*downlink GPON port, 4*GE RJ45 and 1*10G SFP+ port. The height is only 1U for easy installation and spacesaving. G02 is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
| Item | HSGQ-G02 |
| Interface | 2*GPON |
| 4*GE RJ45 | |
| 1*10G SFP+ | |
| PON | ITU.T G.984.x/G.988; |
| Password authentication modes | |
| Terminal access up to 20km on a single fiber | |
| 1: 128 split ratio on single PON port | |
| DBA algorithm, and the particle is for 64Kbit/s | |
| Standard OMCI management function | |
| ONU batch software upgrade | |
| PON port optical parameter detection | |
| Auto registration ONU bound with default profile | |
| Flash | 128MB |
| DDR | 512M |
| Size | 250mm x 180mm x 44mm |
| Weight | ＜5kg |
| Management Ports | Console port |
| Environment | Operating temperature:-10°C~55°C |
| Storage temperature: -40°C~70°C | |
| Storage humidity: 5%~95% (non-condensing) | |
| Power Supply | DC 12V |
| Redundancy Design | Dual power supply can be choose |
| Support AC+DC input | |
| Power Consumption | ＜10W |
| Platform Management Features | Device list |
| Project management | |
| Version release | |
| Lisense management | |
| Permission management | |
| User management | |
| Configuration and Management | CLI, WEB, SNMP, NMS and CLOUD |
| Software and bootrom upgrade by TFTP and FTP | |
| Chinese/ English command prompt | |
| Ping and Debug diagnosis | |
| User/Log/Alarm management | |
| Status | PON Status |
| Uplink Status | |
| Performance Monitor | |
| System Monitor | |
| L2 Function | Support VLAN |
| Support port mirror | |
| Support storm control | |
| Support IGMP snooping/proxy | |
| Support MAC black Hole | |
| Support port isolation | |
| Encrytion of PON port transmitting data |
