Description
8 Ports Integrated GPON OLT Outdoor FTTH Access
Structure: 8*Fixed GPON Port; 4*GE COMBO; 1*Console Port.
Connectivity: Able to meet a large user base, each system supports up to 2048 ONUs.
Bandwidth Delivery: Supports downstream speeds of up to 2.5Gbps and upstream speeds of up to 1.25Gbps, ensuring seamless data transmission and uninterrupted user online experience.
Performance: Its flexible design can be integrated with a variety of upstream interfaces, including Gigabit Ethernet, 10 Gigabit Ethernet, and OTN interfaces.
Efficiency: Ensures continuous network operation and minimizes downtime. It can reduce power consumption, which helps save costs and achieve environmental sustainability.
Application Scenario: FTTH Deployment/Enterprise Network/Mobile Backhaul.

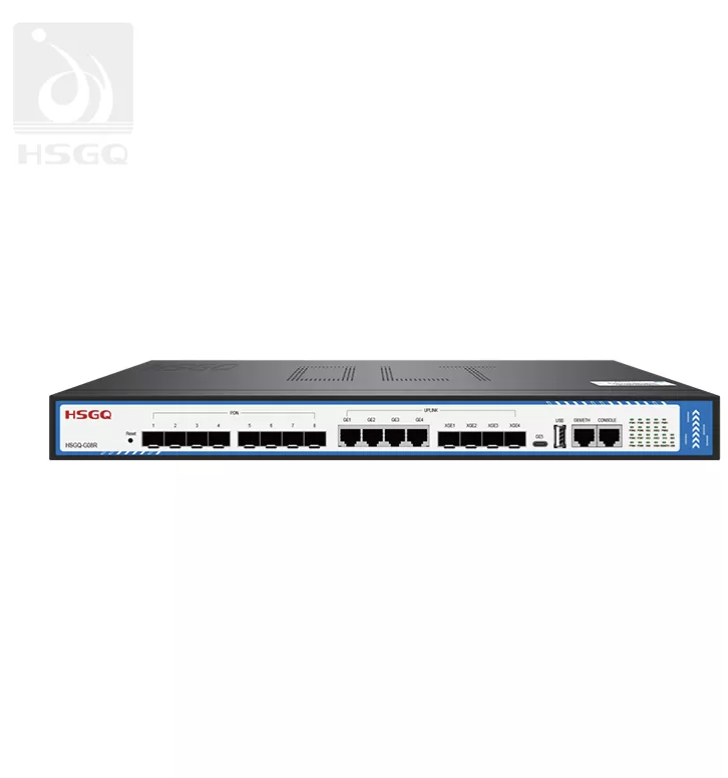

- Model: HSGQ-G08L
HSGQ-G08L belongs 1U cartridge GPON OLT series.Good system stability and high reliability. Support various management methods like CLI, WEB, SNMP etc.
The product provides 8 GPON interfaces, 4*uplink interfaces, 2*SFP and 2*uplink SFP+ interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the all network equipment, which greatly reduces the labor cost and time cost in the process of network construction. It is appropriate for situations like sparsely populated, remote and cost-sensitive areas, smart industrial parks, commercial premises, FTTH, etc. Each GPON port supinterfaces up to splitting ratio1:128 and 1024 GPON users, also supinterfaces different types of ONU based on different networks. 1U for easy installation and maintenance. It is an excellent choice for ISP deploying FTTH networks quickly.
| Model | HSGQ-G08L |
| Interface | 8*GPON |
| 4*GE RJ45 | |
| 2*1G SFP | |
| 2*10G SFP+ | |
| PON | Physical interface: SFP slot |
| Type: Class C++/Class C+++/Class C++++ | |
| Split ratio on single PON port 1:128 | |
| Flash | 32MB |
| DDR | 1GB |
| Size | 442mm x 260mm x 44mm |
| Weight | ＜5kg |
| Standard Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3z (1000BASE-X) | |
| IEEE802.3ab (1000Base-T) | |
| IEEE802.1Q (VLAN) | |
| Management Port | Console port/ETH port |
| Environment | Operating environment: -10°C~55°C |
| storage environment: -40°C~80°C | |
| Storage humidity: 5%~95% (non-condensing) | |
| power supply | AC: 100V-240V 50/60Hz |
| power dissipation | ＜60W |
| PON function | Support auto registration |
| ONU Whitelist and black list | |
| DBA configuration | |
| P2P | |
| ONU authorization | |
| Platform Management Features |
Device list |
| Project management | |
| Version release | |
| Lisense management | |
| Permission management | |
| User management | |
Configuration and Management |
CLI, WEB, SNMP/NMS, CLOUD |
| Software and firmware upgrades | |
| Chinese/English command prompt | |
| Ping and Debug diagnosis | |
| User/Log/Alarm management | |
| L3 Functions | Static Routing |
| DHCP servers, DHCP Snooping and DHCP Relay | |
| OSPF | |
| L2 Functions | Support VLAN, VLAN conversion and QinQ |
| Support up to 4094 VLAN | |
| Support Port Mirror | |
| Support RSTP and MSTP (recovery time <1s) | |
| Support link aggregation (recovery time <10ms) | |
| Support storm control | |
| Support IGMP Snooping/proxy | |
| Support port isolation | |
| Support ACL access control based on data stream | |
| Support QoS based on port, VID, TOS, and MAC address | |
| Support encrytion of PON port transmitting data |
