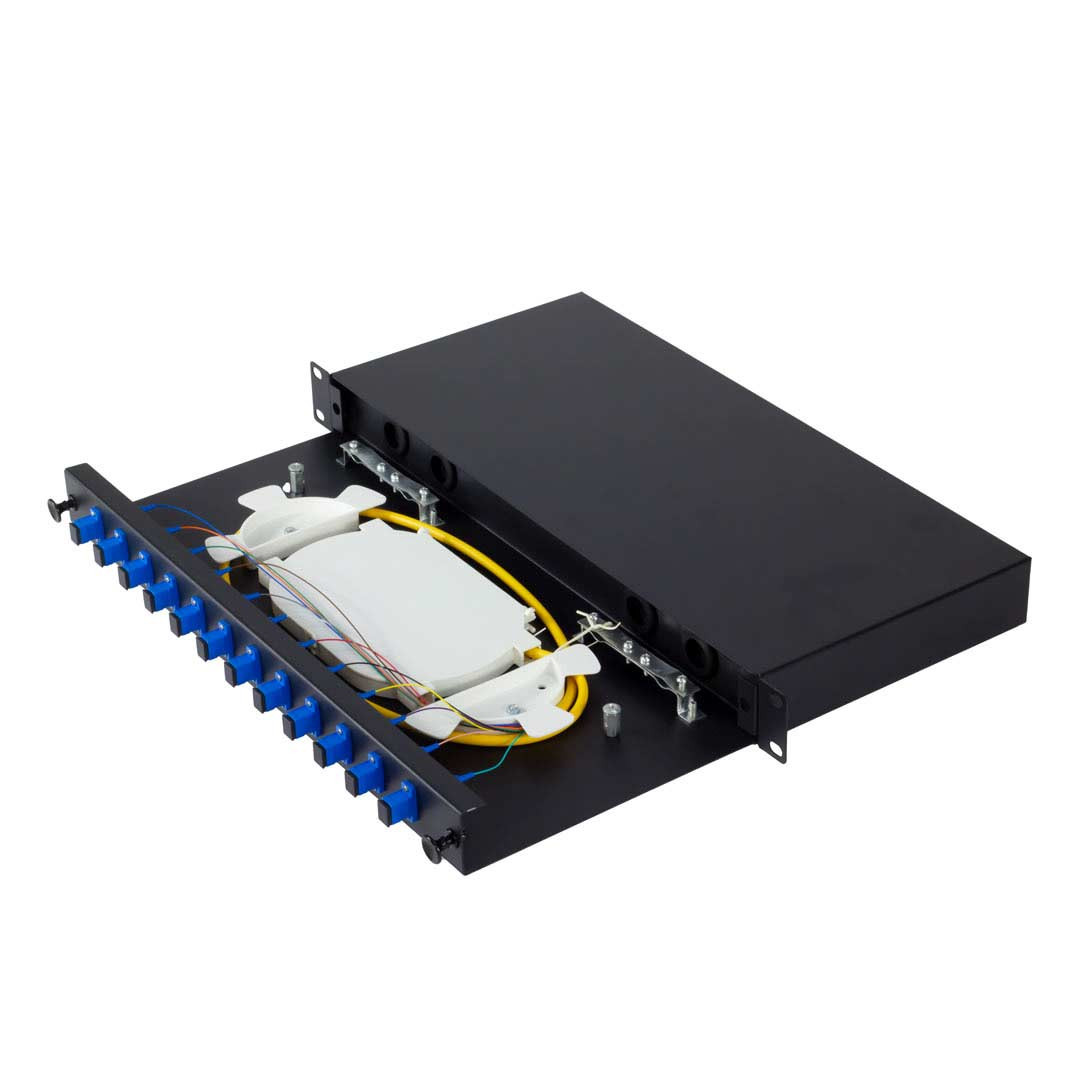

ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame

ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame

In the modern telecommunications landscape, bigger isn’t always better—smarter is. While massive 288-core cabinets handle the backbone, the ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame is the precision instrument that manages the critical “last-mile” or departmental cross-connects. Designed for seamless integration into any standard 19-inch network cabinet, this 1U powerhouse is where high-speed data meets high-quality organization.

Why the Sliding Mechanism Matters : the ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame

If you’ve ever had to re-terminate a fiber in a cramped, fixed-position patch panel, you know the frustration of limited visibility. The ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame eliminates this bottleneck with a smooth-glide sliding drawer. Technicians can pull the tray forward to access internal splice trays and pigtails without disturbing adjacent equipment. This design follows the best practices outlined by the Fiber Optic Association (FOA), emphasizing that accessibility is the key to preventing accidental signal attenuation during routine maintenance.

Pre-Loaded for “Plug-and-Play” Efficiency

Time is the most expensive resource in a data center. That’s why this ODF comes fully loaded with 12 SC/UPC Simplex adapters and color-coded pigtails. The SC/UPC (Ultra Physical Contact) polish ensures a Return Loss of $\ge 50dB$, which is vital for maintaining signal purity in high-speed enterprise networks. By arriving “ready-to-go,” it cuts installation time by up to 50%, allowing your team to focus on configuration rather than component assembly.

The ECA Networks Quality Standard

In an industry flooded with generic hardware, ECA Networks has built a reputation for delivering top-notch products that don’t cut corners. Their ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame is manufactured from heavy-duty cold-rolled steel, finished with a resilient powder coating.

When you source from ECA Networks, you are investing in hardware that respects the delicate nature of glass fiber. Their internal routing guides are precision-engineered to maintain the Minimum Bend Radius, a technical requirement often ignored by budget manufacturers but essential for long-term network health, as noted in TIA-568 cabling standards.

Key Technical Specifications of the ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame

Why Choose This 12-Core ODF?

1. Maintenance Efficiency: The sliding design is a game-changer for high-density racks, allowing for easy port identification and cleaning without the “cable-tug” risk of fixed panels.

2. Scalable & Organized: The internal management system keeps feeder cables and pigtails neatly separated. This organization is critical as data centers move toward 800G and 1.6T architectures, where even minor interference can cause packet loss.

3. Standard Compliance: Designed to fit all standard 19-inch cabinets, making it a universal choice for IT infrastructure upgrades and “brownfield” deployments.

Common Applications

• Data Centers: Efficient fiber patching for localized server clusters.

• Telecommunications: Central office fiber management for small-to-mid-sized exchanges.

• Enterprise Networks: The primary cross-connect point for building-wide fiber backbones and FTTH (Fiber to the Home) distribution.

Secure Your Infrastructure with ECA Networks

Don’t let a sub-par distribution frame be the weak link in your high-speed network. The ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame provides the durability, precision, and ease of use that modern network architects demand.

Shop the 12-Core ODF at ECA Networks | Download the Full Technical Datasheet

Why Professionals Trust ECA Networks

In an industry flooded with generic hardware, ECA Networks has emerged as a gold standard for reliability and engineering excellence. Known for delivering top-notch products that don’t cut corners, ECA Networks understands that a patch panel is more than just a piece of metal, it is the gatekeeper of your data integrity.

ECA Networks has built its reputation on three core pillars: Durability, Precision, and Partnership. Their ODF (SC-UPC 12 Core) Sliding Fiber Optic Distribution Frame is manufactured from heavy-duty cold-rolled steel, finished with a resilient powder coating that resists corrosion and wear in even the most demanding environments.

When you choose ECA Networks, you are investing in a company that prioritizes the technician’s experience. From the smooth action of their sliding rails to the high-tolerance fit of their SC/UPC adapters, every detail is refined to ensure a “first-time-right” installation. Their commitment to excellence has made them a preferred vendor for ISP providers and enterprise architects who refuse to compromise on the physical layer of their infrastructure.
